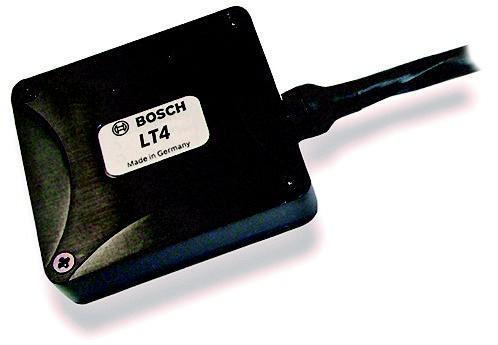

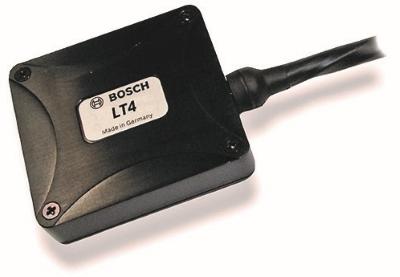

LT4 - Controller Lambda
Use Mouse Wheel to Zoom In/Out
| Item code: | F01TA20070 |
|---|---|
| Marca: |  |
| Codice Produttore: | F 01T A20 070-09 |
| Paese d'origine: | Germania |
| Documenti: | |
| Weight: | 0,098 Kg |
Services
PrintDescription
The Lambdatronic LT4 provides controlled pumping current to supply up to 4 Bosch lambda sensors, type LSU 4.2, LSU 4.9 or Mini-LSU 4.9. The lambda value, the sensor temperature and diagnostics are available via CAN and analog signal.The LSU contains a Nernst and a pump cell. The lambda in the Nernst cell is controlled to lambda = 1.013 independent of the oxygen contents on the emission side, through a current through the pump cell. The current proportional output voltage of the IC is a measure of the lambda value.
The main feature and benefit of this unit is the combination of the Bosch well known lambda IC and a very compact box size with motorsport specification. Furthermore the analog signal output can be configured freely.
Features
| Applicazione: | Lambda 0.75 a 10.12 |
|---|---|
| Connettore: | AS614-35PN |
| Peso: | 98 g |
| Alimentazione: | (6.5) 10 a 14 V |
| Compatibilitą Sonde Bosch: | LSU 4.2, LSU 4.9, Mini-LSU 4.9 |
