Pulsantiera CK-M12 a 12 pulsanti
Use Mouse Wheel to Zoom In/Out
| Item code: | F02UV0U328 |
|---|---|
| Marca: |  |
| Codice Produttore: | F 02U V0U 328-01 |
| Paese d'origine: | Germania |
| Documenti: | |
| Weight: | 0,280 Kg |
Services
PrintDescription

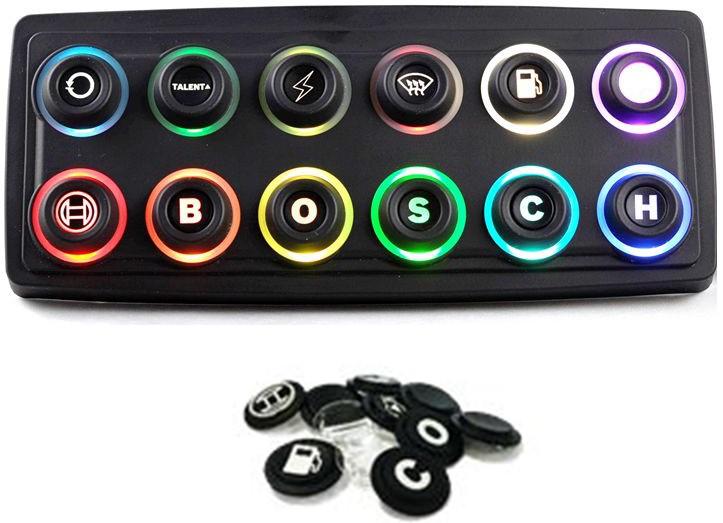

The CAN Keypad CK-M12 allows for simplification of the dashboard by offering 12 buttons and 9 additional wired inputs to be evaluated and transmitted via CAN bus to other devices on the bus. Each button has an individually addressable LED indicating ring that can be used to acknowledge a button press event, indicate status of a device, or alert the driver to a fault condition. No special configuration software is needed, all feedback logic is done by PBX, DDU or ECU. Each keypad is supplied with 15 black inserts, optional insert kits are also available.Features
| Peso (g): | 280 |
|---|---|
| Grado di Protezione: | IP68 |
| Alimentazione: | 9 a 32 V |
| Segnale in uscita: | CAN |
| Ratio trasmissione CAN: | 100 Hz |
| Baudrate CAN: | 1 Mbaud |
