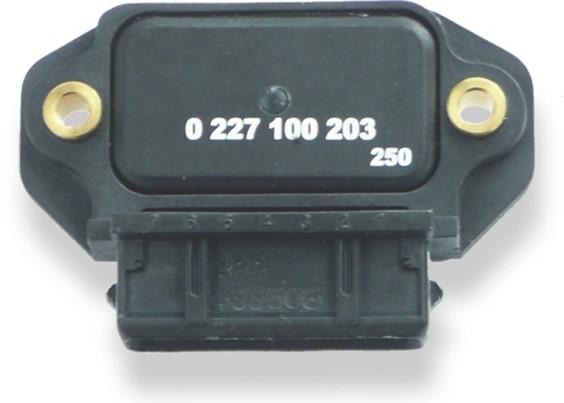

Ignition modules IM 3.2
Use Mouse Wheel to Zoom In/Out
| Item code: | 0227100203 |
|---|---|
| Marca: |  |
| Codice Produttore: | 0 227 100 203-U5G |
| Paese d'origine: | Germania |
| Documenti: | |
| Weight: | 0,047 Kg |
Services
PrintDescription
Ignition Module IM 3.2This module is an external ignition power stage capable of supplying up to three non-transistorized ignition coils.
The IM input signal should be supplied by an ECU with ignition signal outputs in the range of 10 to 20 mA, e.g. MS 6.
The IM unit combines the robustness of a high quality production part with good electrical performance to provide an ideal solution for adapting non-transistorized coils to an ECU without internal ignition driver stages.
