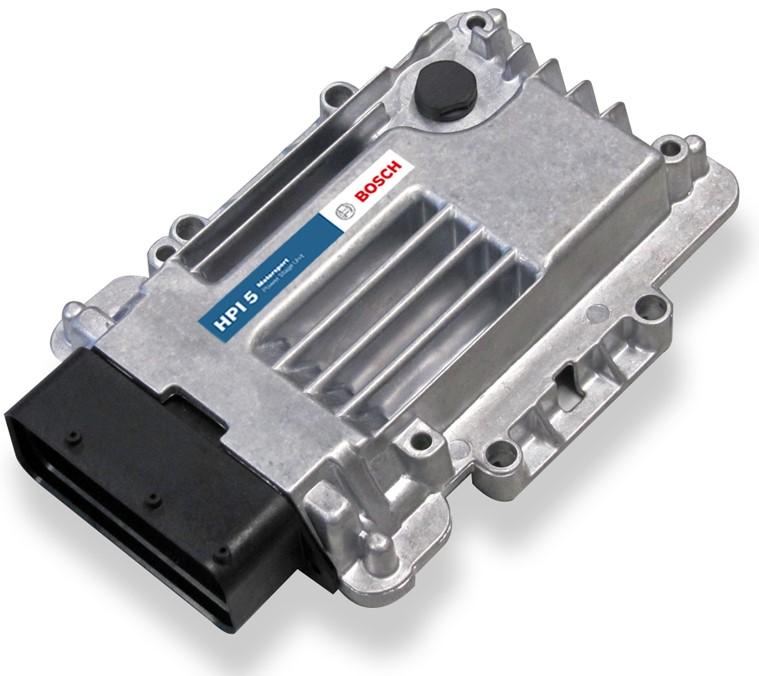

HPI 5 - Power Stage Unit Optimized for Bosch HDP 5
Use Mouse Wheel to Zoom In/Out
| Item code: | F02UV00929-02 |
|---|---|
| Marca: |  |
| Codice Produttore: | F 02U V00 929-02 |
| Paese d'origine: | Germania |
| Codice doganale :: | 90329000 |
| Documenti: | |
| Weight: | 0,550 Kg |
Services
PrintDescription
The injector power stage HPI 5 is a device for driving injectors and high pressure pumps for gasoline direct injection. Combined with a suitable ECU up to 8 injectors can be driven. The injectors are gathered in 4 groups of 2 injectors each. Within a group only one injector can be switched on at the same time. The 4 groups are totally independent, so that overlapping injection of injectors of different groups is possible. The HPI 5 is mainly designed to drive the Bosch high pressure pump HDP 5. Communication between main ECU and the HPI 5 is realized via CAN interface.Features
| Numero Max di Cilindri: | 8 |
|---|---|
| Giri Motore Max (8 cilindri): | 7000 |
| Giri Motore Max (4 cilindri): | 14000 |
| Case: | Alluminio |
| Dimensioni (mm): | 190 x 123 x 36 |
| Peso (g): | 550 |
| Alimentazione (V): | 14 |
| Linea CAN: | 1x 1Mbaud |
Attachments
- F 02U V00 929_Datasheet
Datasheet_HPI5_F02UV00929.pdf (333,83 KB) - F 02U V00 929_Operation manual
Operation-Manual_HPI5.pdf (1.151,02 KB) - F 02U V00 929_Pin layout
Pin-Layout_HPI5.pdf (688,69 KB)
