PCAN-MicroMod FD
Use Mouse Wheel to Zoom In/Out
| Item code: | IPEH-003080 |
|---|---|
| Supplier code: | IPEH-003080 |
| Paese d'origine: | Germania |
| Codice doganale :: | 85176200 |
| DOC: | |
| Weight: | 0,220 Kg |
Services
PrintDescription

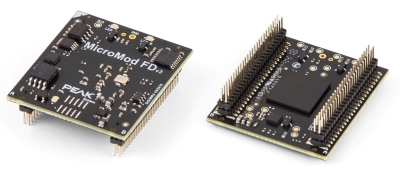

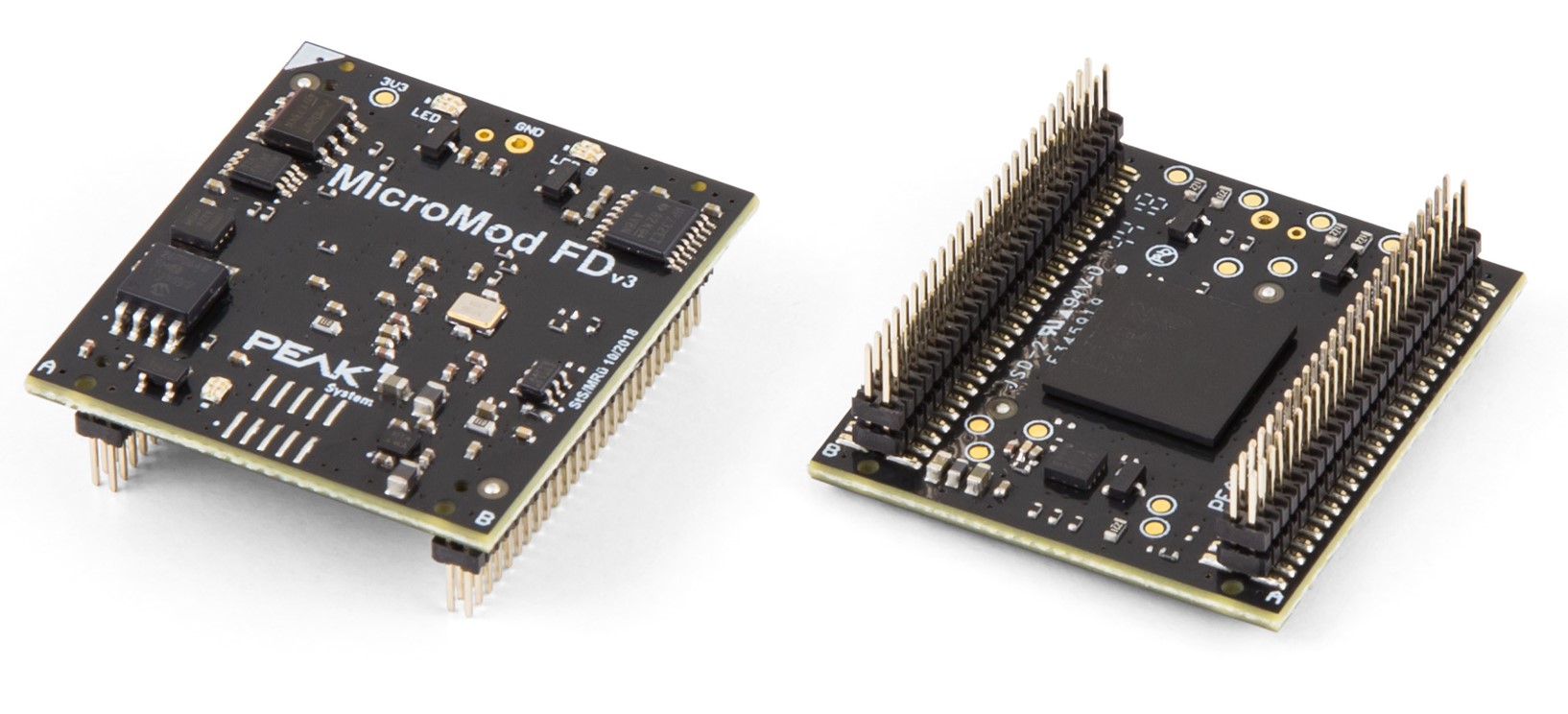

Plug-in board with 2 double pin strips of 50 pins each, 50 mil pitch (1.27 mm)High-speed CAN connection (ISO 11898-2)
Complies with CAN specifications 2.0 A/B and FD
CAN FD bit rates for the data field (64 bytes max.) from 20 kbit/s up to 10 Mbit/s
CAN bit rates from 20 kbit/s up to 1 Mbit/s
8 analog inputs
8 digital inputs
