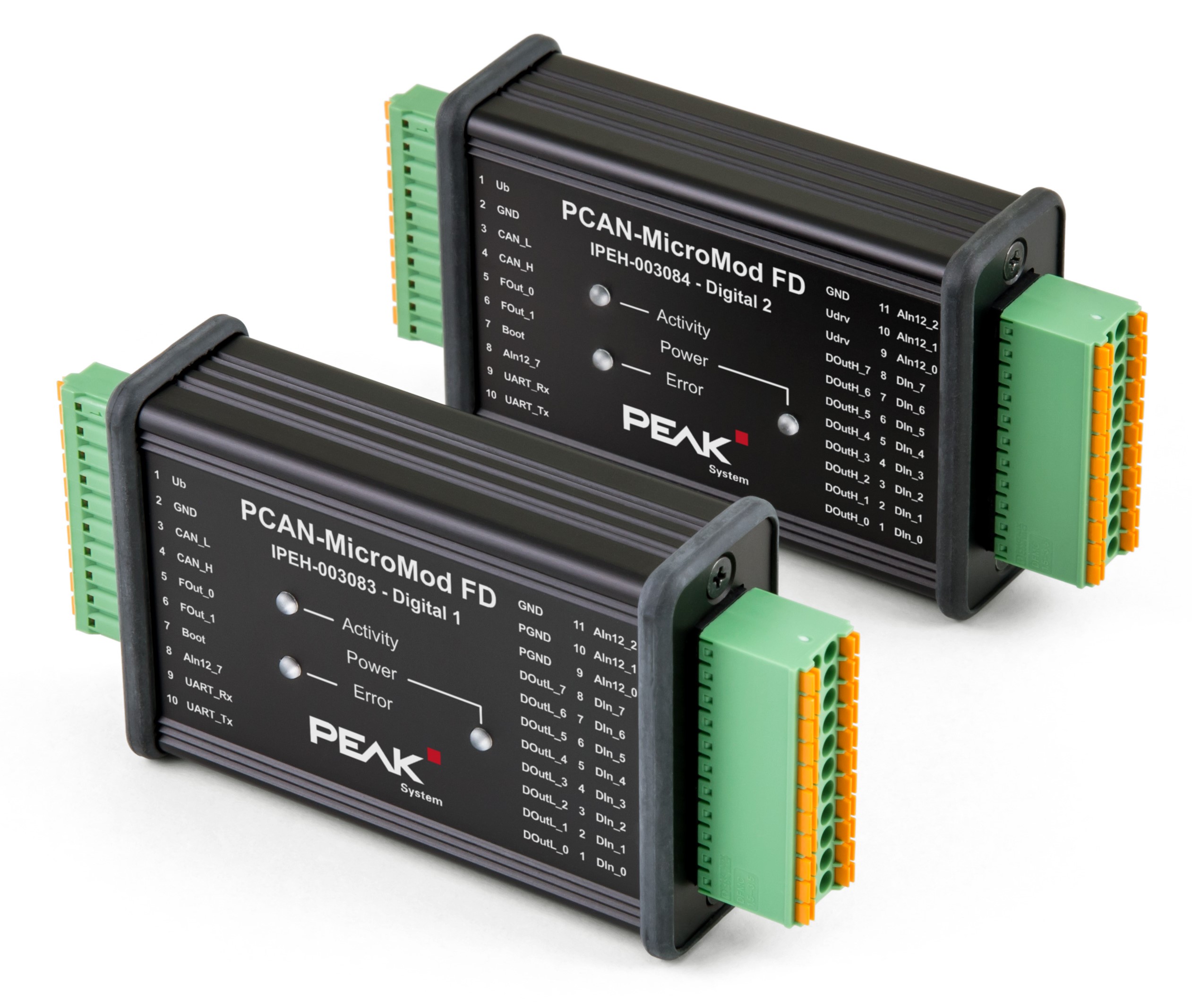

PCAN-MicroMod FD Digital 2
Use Mouse Wheel to Zoom In/Out
| Item code: | IPEH-003084 |
|---|---|
| Supplier code: | IPEH-003084 |
| Paese d'origine: | Germania |
| Codice doganale :: | 90319000 |
| DOC: | |
| Weight: | 0,020 Kg |
Services
PrintDescription
The PCAN-MicroMod FD plug-in board can be purchased together with ready-to-use motherboards that provide peripherals for specific requirements. For the connection of CAN, I/O, and power supply, spring terminal connectors are used. The motherboards PCAN-MicroMod FD Digital 1 and 2 put the emphasis on digital inputs and outputs, which are provided with appropriate protective circuitry. The digital outputs of Digital 1 are equipped with low-side switches and those of Digital 2 with high-side switches.The PCAN-MicroMod FD is configured using the supplied Windows software. In addition to simple I/O mapping to CAN IDs, function blocks are also available for processing the data. The configuration created on the computer is transferred via the CAN bus to the PCAN-MicroMod FD which then runs as an independent CAN node. Multiple modules can be configured independently on a CAN bus.
