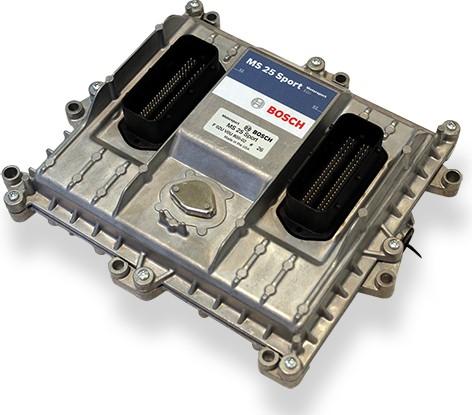

ECU DIESEL MS 25 Sport
Use Mouse Wheel to Zoom In/Out
| Item code: | F02UV0U800-02 |
|---|---|
| Marca: |  |
| Codice Produttore: | F 02U V0U 800-02 |
| Paese d'origine: | Germania |
| Documenti: | |
| Weight: | 1,800 Kg |
Services
PrintDescription
The MS 25 Sport is an ECU for Diesel engines with up to 8 cylinders. It is developed for use with Bosch solenoid injectors. The MS 25 Sport utilizes a software development process based on MATLAB® & Simulink®.The MS 25 Sport is able to operate in 12 V or 24 V systems. The base SW is able to control one hydraulic bank configuration with Fuel Metering Unit (FMU) and Pressure Control Valve (PCV).
Features
| Materiale Custodia: | Alluminio |
|---|---|
| Dimensioni: | 260x250x81 |
| Gamma di Temperatura: | -40 fino 85°C |
| Peso: | 1800g |
| Classe di Protezione: | IPx6 |
| Tipo Connettori: | Automotive |
| Tensione di alimentazione: | 12V o 24V |
| Ingressi in Frequenza: | 7 |
| Ingressi segnali Giri induttivi: | 1 |
| Ingressi Segnali Giri Hall: | 1 (opzione) |
| Ingressi Analogici: | 31 |
| Ingressi Digitali: | 14 |
| Ingressi Lambda: | 1 |
| Uscita Iniettori (induttivi): | 8 |
| Fuel Metering Unit (pompa alta pressione): | 2 |
| Pressure control valve (Rail): | 2 |
| Uscite di Potenza (low side): | 12 |
| Uscite Ponte ad H: | 2 |
| Uscite Potenza per lambda: | 1 |
| Riferimenti in tensione (5V): | 3 |
| CAN: | 3 |
| LIN: | 1 |
| SENT: | 1 |
| RS232: | 0 |
Accessorio
Attachments
- F 02U V0U 800_Datasheet
Datasheet_MS25Sport_F02UV0U800-02.pdf (422,79 KB) - F 02U V0U 800_Operation manual
Operation-Manual_MS25Sport.pdf (11.309,59 KB) - F 02U V0U 800_Pin layout
Pinlayout_MS25Sport.pdf (2.521,25 KB) - F 02U V0U 800_Wiring guide
Wiring-Guide_MS25Sport.pdf (1.510,61 KB)
