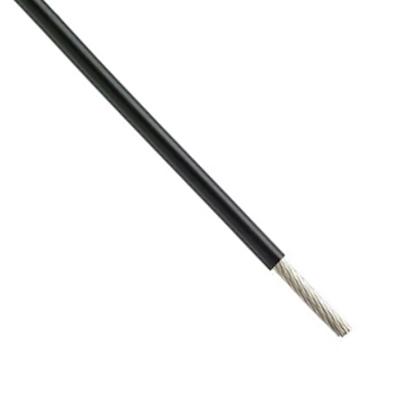

Wire Spec 44 AWG 26 Black
| Item code: | E500001000 |
|---|---|
| Brand: | Raychem |
| Supplier code: | 44A0111-26-0 |
Services
PrintDescription
WIRE, SPEC44, 26AWG, BLACK, 100 MReel Length (Imperial): 328ft
Reel Length (Metric): 100 m
Conductor Size AWG: 26AWG
Conductor Area CSA: 0.16 mm²
Jacket Colour: Black
Jacket Material: PVDF (Polyvinylidene Fluoride)
Conductor Material: Copper
External Diameter: 0.86 mm
Voltage Rating: 600V
No. of Strands x Strand Size1: 19 x 0.1 mm
Conductor Make-up: 19 / 0.1 mm
Jacket Material: Polyalkene
Operating Temperature Max: 150 °C
Operating Temperature Min: -65 °C
Outer Diameter: 0.86mm
Secondary Insulation Colour: Black
Secondary Insulation Material: Radiation Crosslinked Modified PVF2
Short Term Temperature: 300 °C
Standard: DEF61-12 (Part 26), MIL-W-81044
Voltage Rating V AC: 600V
Wire Size: 26AWG
