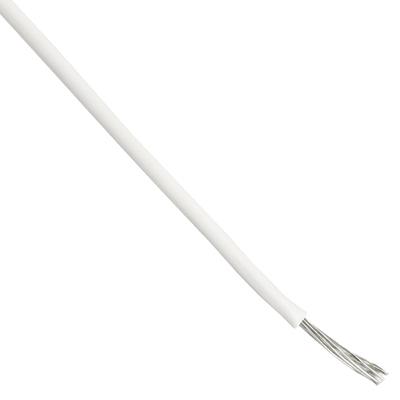

Wire Spec 44 AWG 20 White
| Item code: | E500004900 |
|---|---|
| Brand: | Raychem |
| Supplier code: | 44A0111-20-9 |
Services
PrintDescription
WIRE, 20AWG, WHITE, 100 MReel Length (Imperial): 328 ft
Reel Length (Metric): 100 m
Conductor Size AWG: 20AWG
Conductor Area CSA: 0.62 mm²
Jacket Colour: White
Jacket Material: PVDF (Polyvinylidene Fluoride)
Conductor Material: Copper
External Diameter: 1.4 mm
Voltage Rating: 600V
No. of Strands x Strand Size1: 19 x 0.203 mm
Conductor Make-up: 19 / 0.203 mm
Jacket Material: Polyalkene
Operating Temperature Max: 150 °C
Operating Temperature Min: -65 °C
Outer Diameter: 1.4 mm
Secondary Insulation Colour: White
Secondary Insulation Material: Radiation Crosslinked Modified PVF2
Short Term Temperature: 300 °C
Standard: DEF61-12 (Part 26), MIL-W-81044
Voltage Rating V AC: 600V
Wire Size: 20AWG
