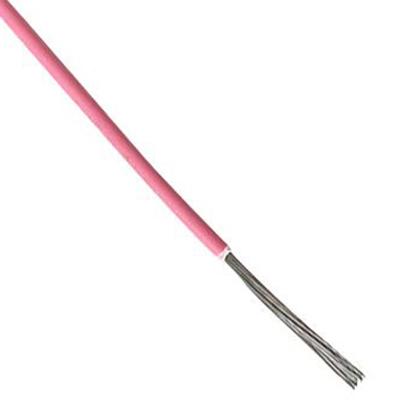

Cavo Spec 44 AWG 26 Rosa
| Item code: | E5000012L0 |
|---|---|
| Brand: | Raychem |
| Supplier code: | 44A0111-26-2L |
Services
PrintDescription
WIRE, SPEC44, 26AWG, PINK, 100MReel Length (Imperial): 328ft
Reel Length (Metric): 100m
Conductor Size AWG: 26AWG
Conductor Area CSA: 0.16mm²
Jacket Colour: Pink
Jacket Material: PVDF (Polyvinylidene Fluoride)
Conductor Material: Copper
External Diameter: 0.86mm
Voltage Rating: 600V
No. of Strands x Strand Size1: 19 x 0.1mm
Conductor Make-up: 19 / 0.1mm
Jacket Material: Polyalkene
Operating Temperature Max: 150°C
Operating Temperature Min: -65°C
Outer Diameter: 0.86mm
Secondary Insulation Colour: Black
Secondary Insulation Material: Radiation Crosslinked Modified PVF2
Short Term Temperature: 300°C
Standard: DEF61-12 (Part 26), MIL-W-81044
Voltage Rating V AC: 600V
Wire Size: 26AWG
