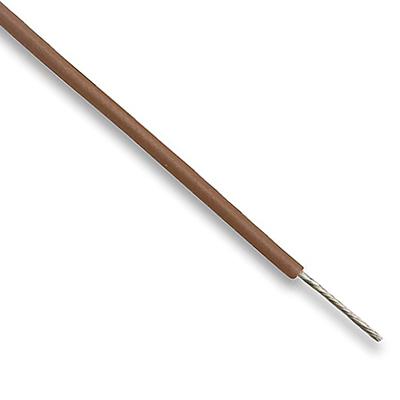

Cavo Spec 44 AWG 20 Marrone
| Item code: | E500004100 |
|---|---|
| Brand: | Raychem |
| Supplier code: | 44A0111-20-1 |
| Paese d'origine: | Regno Unito |
| Codice doganale :: | 8544499500 |
Services
PrintDescription
WIRE, 20AWG, BROWN, 100MReel Length (Imperial): 328ft
Reel Length (Metric): 100m
Conductor Size AWG: 20AWG
Conductor Area CSA: 0.62mm²
Jacket Colour: Brown
Jacket Material: PVDF (Polyvinylidene Fluoride)
Conductor Material: Copper
External Diameter: 1.4mm
Voltage Rating: 600V
No. of Strands x Strand Size1: 19 x 0.203mm
Conductor Make-up: 19 / 0.203mm
Jacket Material: Polyalkene
Operating Temperature Max: 150°C
Operating Temperature Min: -65°C
Outer Diameter: 1.4mm
Secondary Insulation Colour: White
Secondary Insulation Material: Radiation Crosslinked Modified PVF2
Short Term Temperature: 300°C
Standard: DEF61-12 (Part 26), MIL-W-81044
Voltage Rating V AC: 600V
Wire Size: 20AWG
