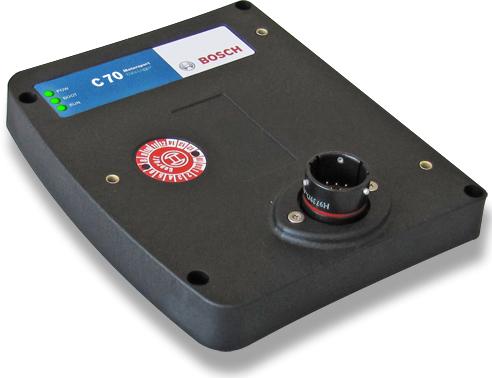

Data Logger C70
Use Mouse Wheel to Zoom In/Out
| Item code: | F02UV02302-01 |
|---|---|
| Marca: |  |
| Codice Produttore: | F 02U V02 302-01 |
| Paese d'origine: | Germania |
| Documenti: | |
| Weight: | 0,450 Kg |
Services
PrintDescription
The data logger C 70 integrates a programmable data logging system for motorsport applications for a very competitive price. Additional input devices can be connected via Ethernet and CAN buses.Data Analysis Software WinDarab is available free of charge as "WinDarab V7 free" on our website. The logger can be upgraded to a 2nd logging partition of 1 GB (e.g. for long term recording).
For quick data transfer from the car e.g. during pit stop, data copy to a USB stick is available as an option. The stick is connected to the wiring harness for the C 70.
The device comes with 4 analogue and 4 speed inputs as standard; further 12 analogue inputs are available as optional upgrade.
Features
| Canali Analogici: | 4 standard, 12 addizionali come optional |
|---|---|
| Risoluzione Bit : | 12 |
| Uscite Digitali: | 4 |
| Logging Rate: | Max 600 kB/s |
| Canali massimi acquisibili: | 1040 |
| Memoria : | 3 GB |
| Memoria su Flash/USB esterne : | Sì (come upgrade) |
| Ethernet : | 2 x 100 Mb/s |
| RS 232: | 2 |
| Linee Can : | 2 |
| Lap Trigger: | 1 |
| CCP-Master (Comunicazione diretta con ECU): | Sì (Upgrade Software) |
| Programmazione: | RaceCon |
| Analisi (Compreso): | WinDarab7 Free |
Attachments
- F 02U V02 302_Datasheet
Datasheet_C70_F02UV02302.pdf (505,05 KB) - F 02U V02 302_Operation manual
Operation-Manual_C70.pdf (19.755,46 KB)
